Fast Self - Testing LED DMX Decoder 12 Channel Output OLED Screen Easy Operation

Name: Fast Self Testing LED DMX Decoder 12 Channel Output OLED Screen Easy Operation
Brand: vyeofar
Price: 1 USD

Fast Self - Testing LED DMX Decoder 12 Channel Output OLED Screen Easy Operation Manufactures

Brand Name : vyeofar

Model Number : LT-912-OLED

Certification : CE/Rohs

Place of Origin : China

MOQ : 10

Price : negotiable

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 1000/month

Packaging Details : White box

Material : Metal

DMX512 socket : 3-pin XLR, RJ45, Green terminal

Feature : 12 Channel DMX decoder

output : 4A*12CH DMX CV decoder

Voltage : DC 12-24V

Power : 1152W

Contact Now

Led DMX Decoder Constant Voltage DC12V-24V 4A*12CH RJ45 12 channel output OLED Screen

Pruduct Introduction:

1. Designed for Hi-power multiple channels applicaiton, 12 channels output, and Max. 4A current per channel. up to 1152W output power

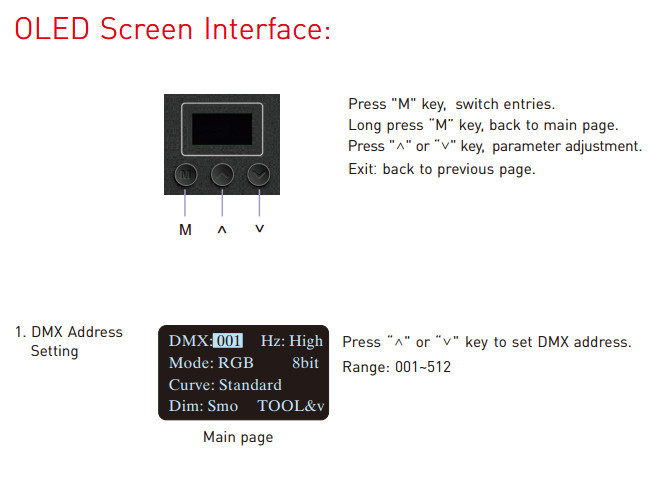

2. Easy operation with digital display and the touch buttons

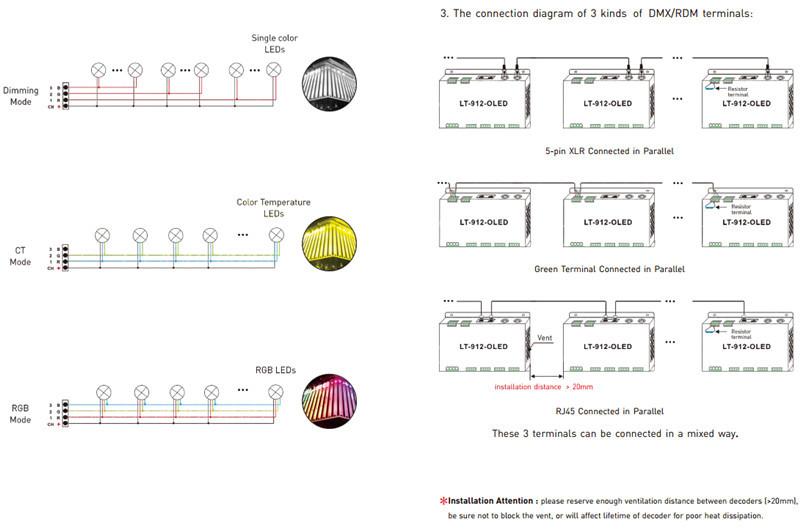

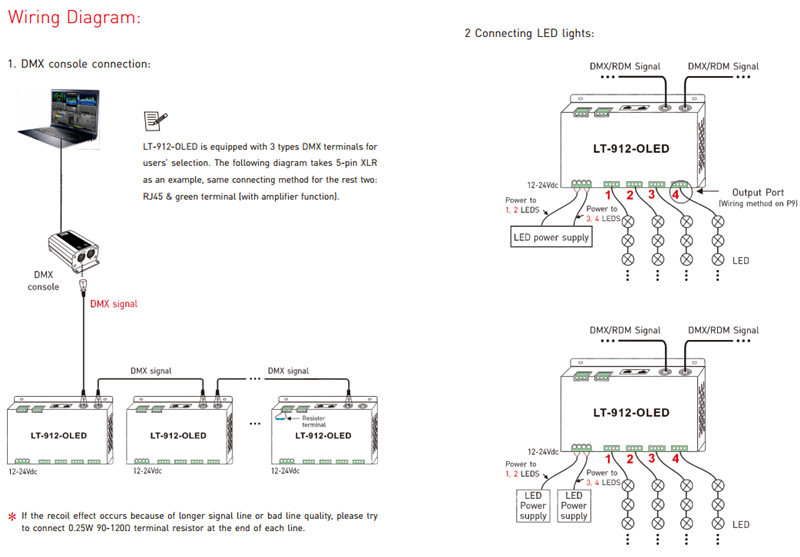

3. Support 2 kinds of DMX ports:3-pin XLR, RJ45

4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.

5. With shortcut protection and over load protection, as well as warniing function when fault.

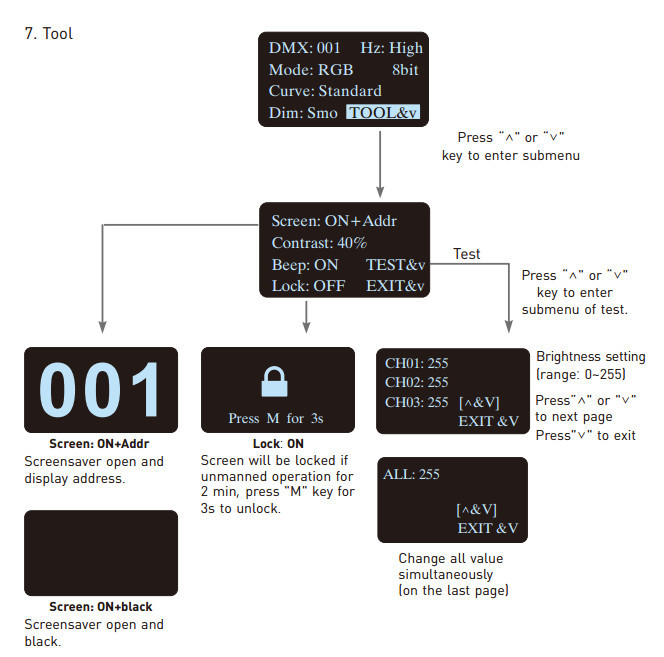

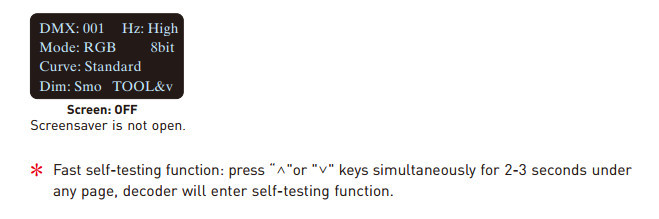

6. With fast self - testing function.

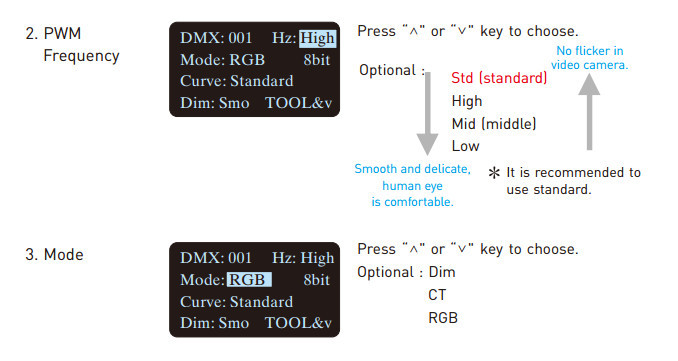

7. High / Low PWM frequency for optional

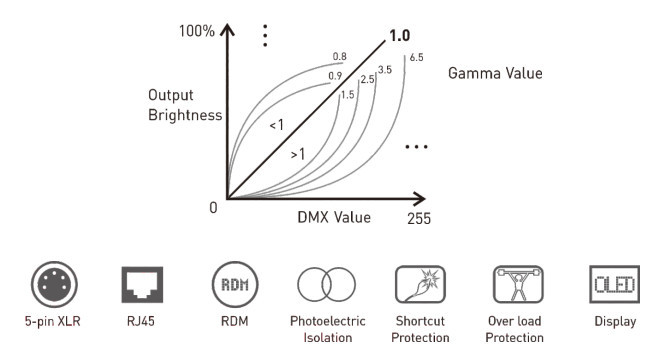

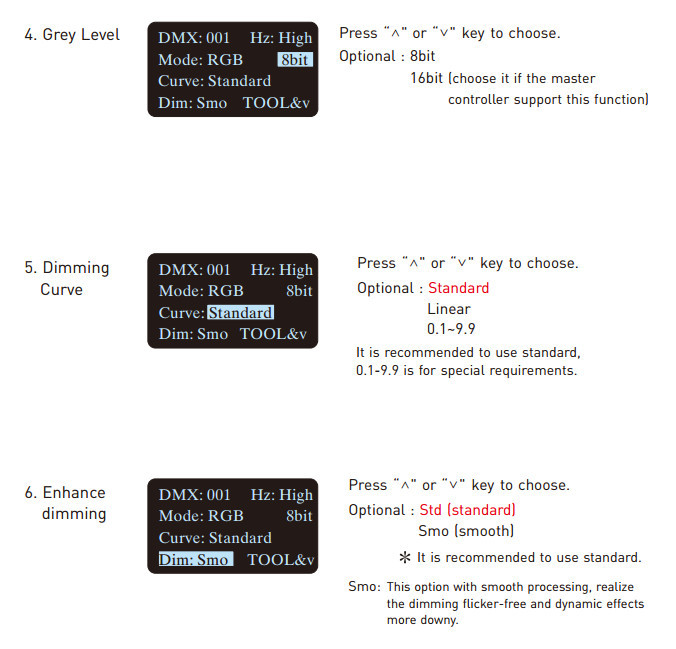

8. 16bit(65536 levels)/8bit(256 levels) grey level optional

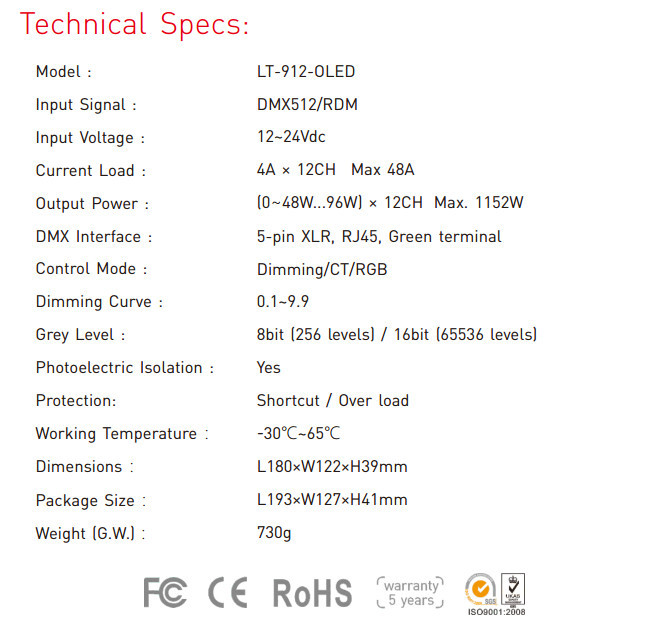

Input signal	DMX512/RDM
Input voltage	DC12V～DC24V
Max load current	4A × 12CH Max 48A
Max output power	(0~48W...96W) × 12CH Max. 1152W
DMX512 socket	3-pin XLR, RJ45, Green terminal
Gray scale level	8bit (256 levels) / 16bit (65536 levels)
Working temperature	-30℃～65℃

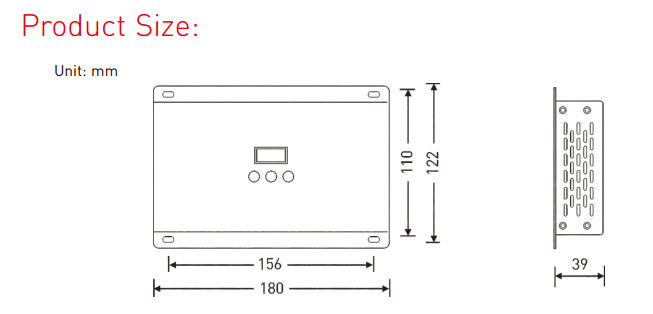

Dimension	L180×W122×H39mm
Package Size	L193×W127×H41mm
Weight (G.W)	730g

Fast Self - Testing LED DMX Decoder 12 Channel Output OLED Screen Easy Operation
